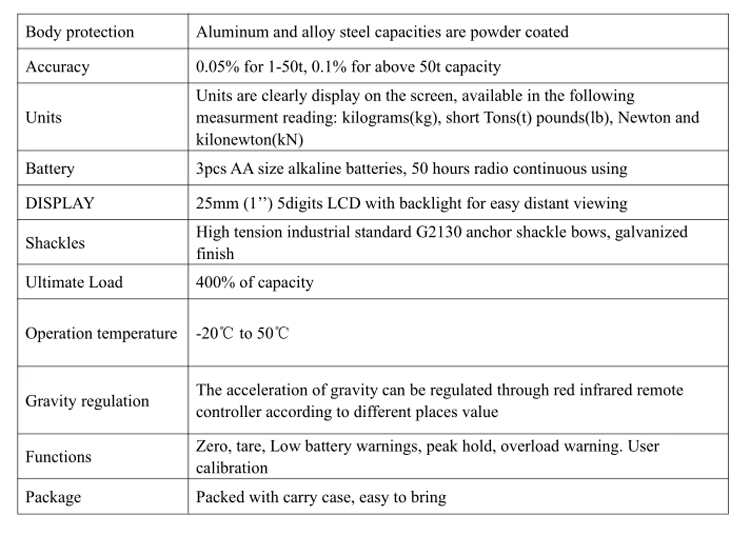

♦ Aluminum and alloy steel capacities are powder coated.

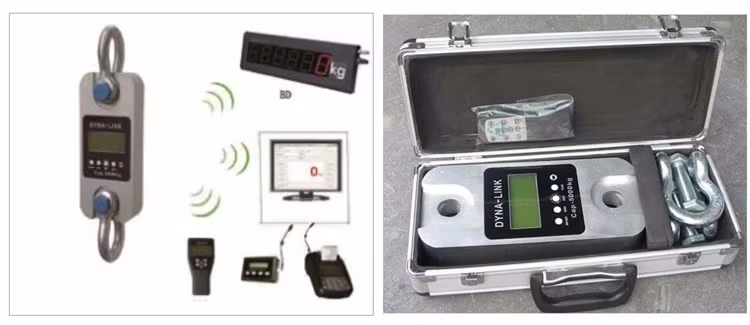

♦ The acceleration of gravity can be regulated through red infrared remote controller according to different places value.

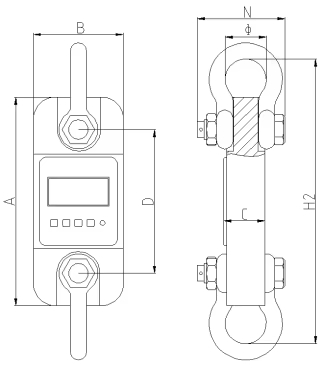

Dimension of industry electronic S style vehicle dynamometer 50ton
| MODEL | Cap(t) | Div(kg) | A（mm） | B（mm） | C（mm） | D（mm） | φ（mm） | H（mm） | Material |
| GWD400-1t | 1 | 0.5 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| GWD400-2t | 2 | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| GWD400-3t | 3 | 1 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| GWD400-5t | 5 | 2 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| GWD400-10t | 10 | 5 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| GWD400-20t | 20 | 10 | 375 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| GWD400-30t | 30 | 10 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| GWD400-50t | 50 | 20 | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| GWD400-100t | 100 | 50 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| GWD400-200t | 200 | 100 | 720 | 265 | 183 | 440 | 280 | 1362 | Alloy Steel |
| Model | GWD400-1t | GWD400-2t | GWD400-3t | GWD400-5t | GWD400-10t |
| Unit Weight(kg) | 1.6 | 2.1 | 2.1 | 2.7 | 10.4 |
| Weight with shackles(kg) | 3.1 | 4.6 | 4.6 | 6.3 | 24.8 |
| Model | GWD400-20t | GWD400-30t | GWD400-50t | GWD400-100t | GWD400-200t |
| Unit Weight(kg) | 17.8 | 25 | 39 | 81 | 210 |
| Weight with shackles(kg) | 48.6 | 73 | 128 | 321 | 776 |
